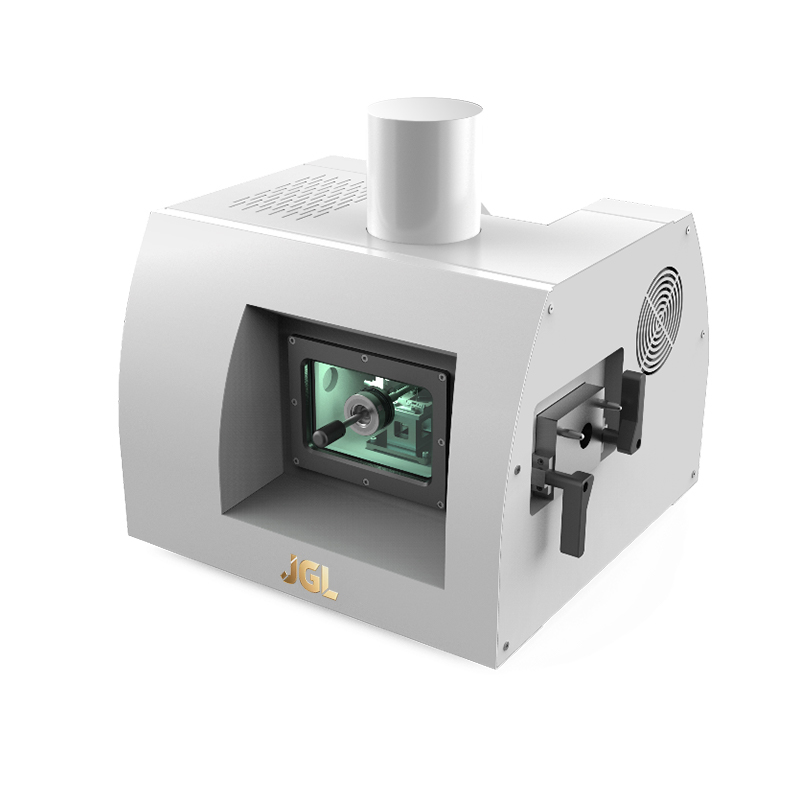

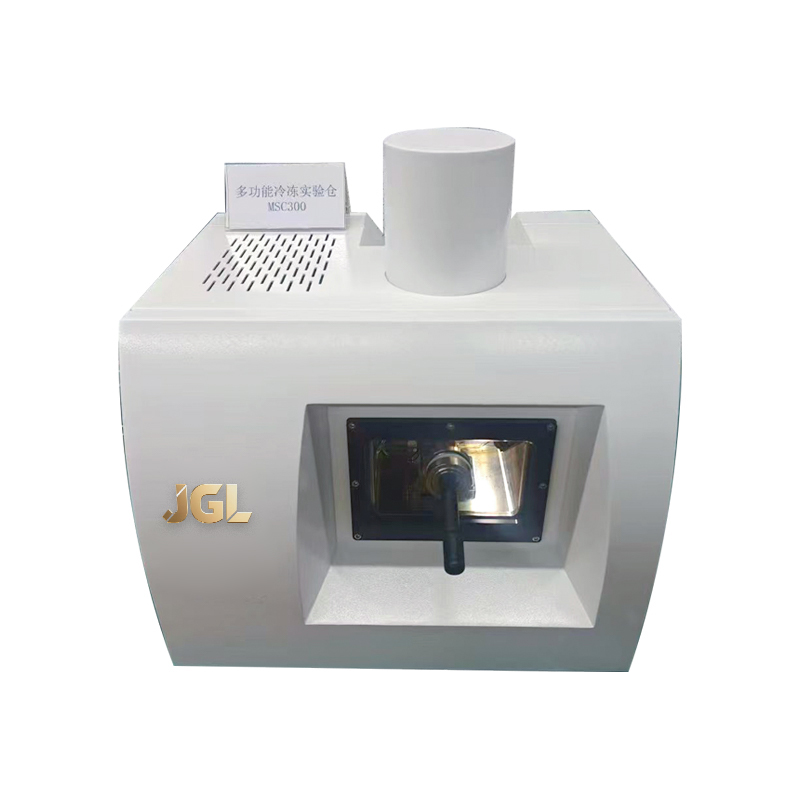

MSC300 Multi-Functional Cryogenic Chamber for Advanced Laboratory Applications

2. Conductive surface coating for high-quality electron microscopy samples
Surface coating is performed using argon ion beam bombardment of target materials to achieve etching-based deposition. Compared with conventional magnetron sputtering, this method provides improved coating uniformity, adhesion, and fine structural conformity, which is critical for high-resolution electron microscopy. The system supports conductive coating with multiple metals, including platinum (Pt), gold (Au), chromium (Cr), and tungsten (W), as well as carbon coating. This flexibility allows users to select appropriate coating materials according to imaging requirements, analytical objectives, and sample characteristics.

3. Vacuum cryogenic transfer and freeze-fracture of hydrated samples
When used in combination with the company’s LNS200 liquid nitrogen slurry workbench and the CVC100 vacuum transfer chamber, the system enables a complete cryogenic preparation workflow for hydrated samples. This includes rapid cryo-fixation, vacuum-based freeze-fracture, controlled sublimation etching, and high-vacuum conductive coating. The integrated process supports reliable pre-treatment for cryo-scanning electron microscopy (cryo-SEM) observation, while maintaining sample integrity and minimizing contamination during low-temperature transfer and handling.

Q: How long will it take to receive a reply after placing the inquiry?

We attach great importance to every inquiry. On working days, we will respond within 12 hours after receiving the inquiry.

Q: What products do you mainly offer?

We focus on the research and development as well as the supply of laboratory equipment and safety compliance testing instruments.

Q: In which fields is this product mainly applied?

Our products are widely applied in various fields, mainly including the electronics industry, the medical industry, the automotive industry, semiconductors, the research field, the optoelectronic industry, and the new energy sector.
