Key Features and Advantages
Multi-channel Scanning: Equipped with a built-in 8-channel matrix scanner, it can quickly and accurately complete multi-point tests, greatly improving test efficiency.
Multiple Testing Modes: Supports comprehensive testing for AC, DC, and insulation resistance, with a wide voltage range and high accuracy to meet testing needs under different loads.
Fast Discharge and Arc Detection: After the test is complete, the device has a fast discharge function to ensure operational safety. The built-in arc detection feature can immediately detect any arc occurrences, ensuring the integrity and safety of the equipment during testing.

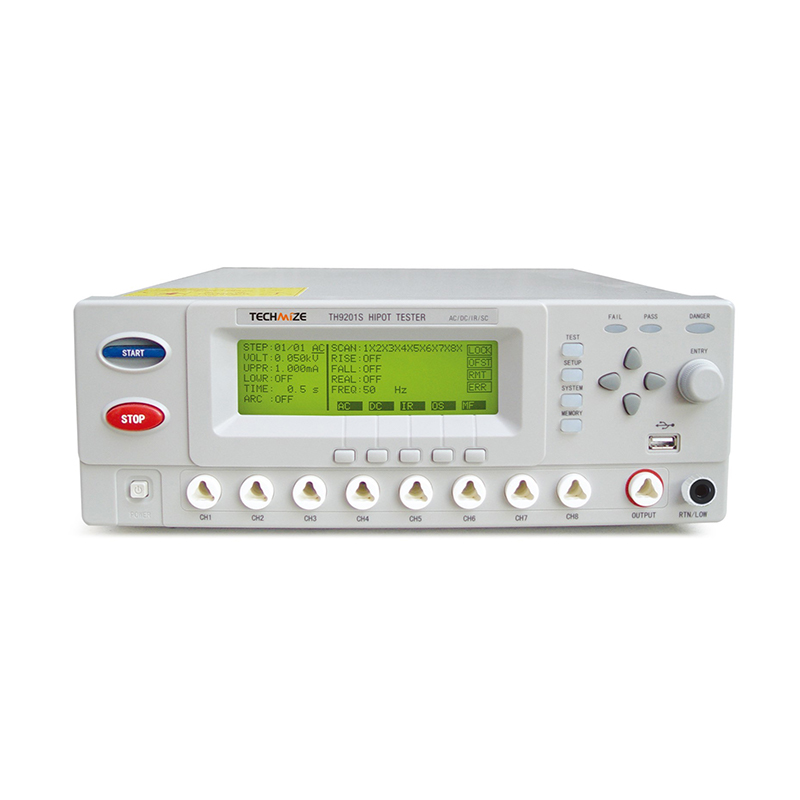

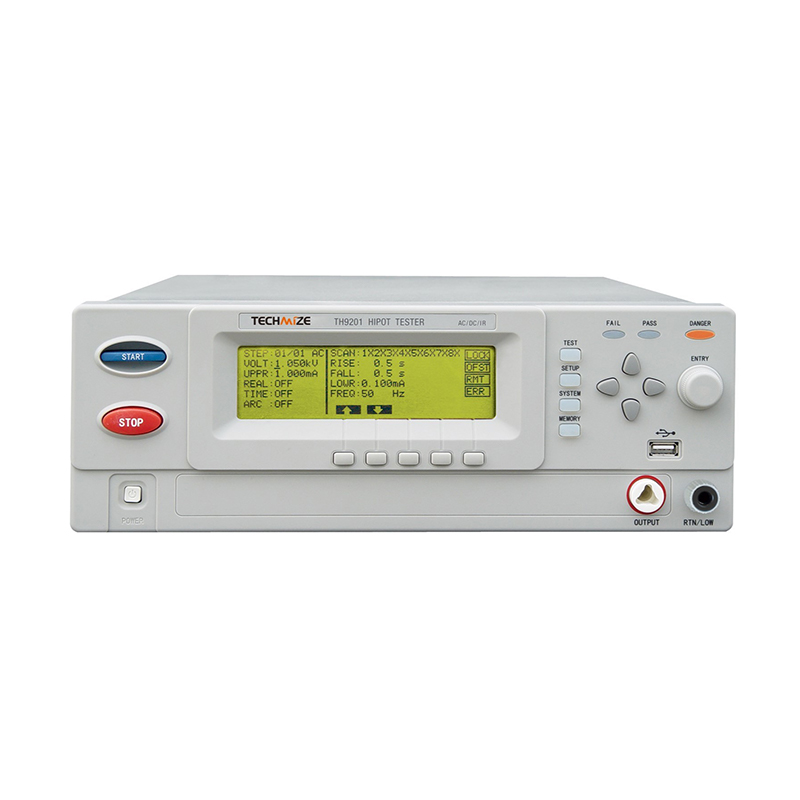

User-Friendly Interface: A 240×64 dot matrix LCD display, combined with a new user interface, makes the operation more intuitive and convenient.
Adjustable Testing Parameters: Parameters such as voltage rise time, voltage drop time, test time, and wait time are fully adjustable to meet different testing conditions.

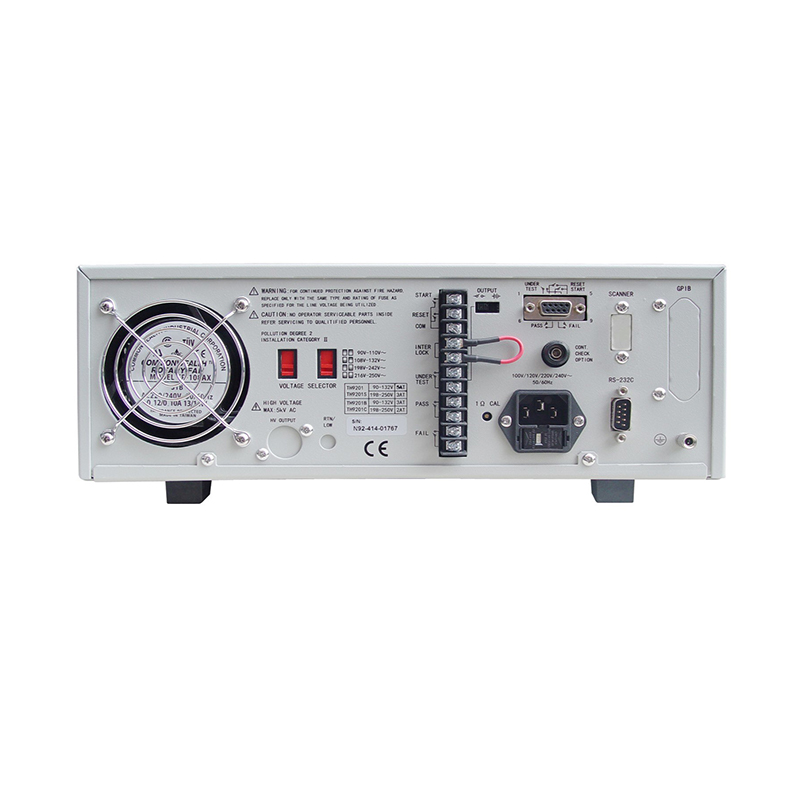

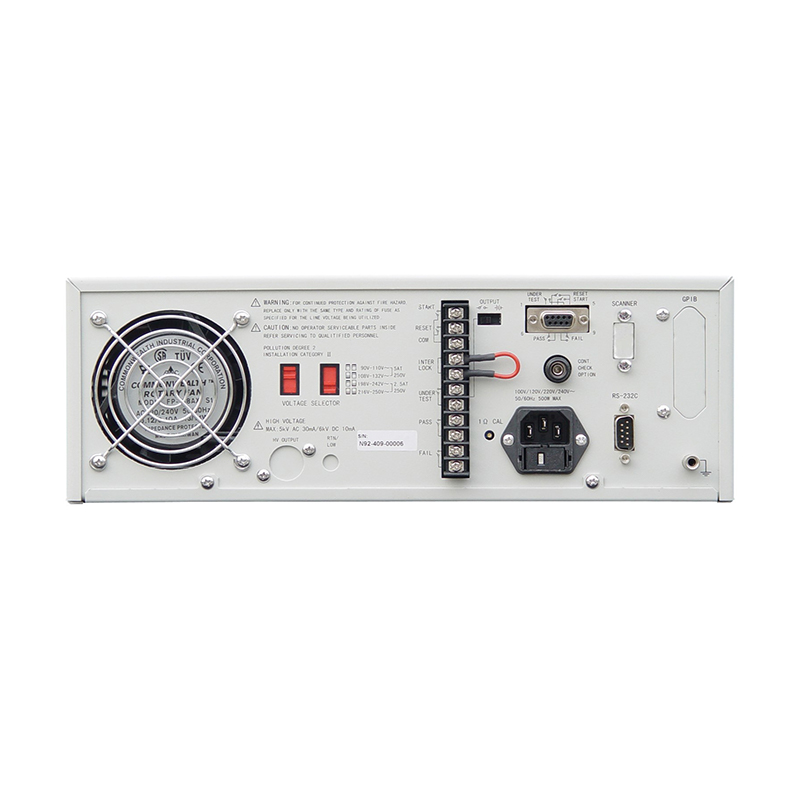

Rich Interfaces: Includes RS232, USB, HANDLER (robot interface), SCAN (scanning interface), and REMOTE I/O (remote interface), allowing seamless integration with automation equipment and external systems.
Storage and Record Function: Each test group can store up to 100 test steps, with a total storage capacity of 500 steps, making it easy for users to manage and analyze historical test data.
Application Areas
Transformer and Electrical Equipment Testing: Provides efficient testing for the safety of transformers and electrical devices, ensuring the stable operation of electrical systems under high-voltage environments.
Electronic Component Quality Control: Used for testing the withstand voltage and insulation performance of electronic components, especially capacitors, inductors, and transformers, ensuring the quality and reliability of components.
Winding Safety Testing: Conducts high-voltage tests on the windings of motors, generators, and other equipment, ensuring compliance with industrial standards.
Manufacturing and Automated Production Lines: Supports integration with automated equipment, making it suitable for high-efficiency withstand voltage testing during batch production.
